A new Paper " The morphology of doubly-clamped graphene nanoribbons" is published.
C. Brand, M. R. A. Monazam, C. Mangler, Y. Lilach, O. Cheshnovsky, M. Arndt,
J. Kotakoski
2D Materials 8, 025035 (2021) DOI: 10.1088/2053-1583/abe952

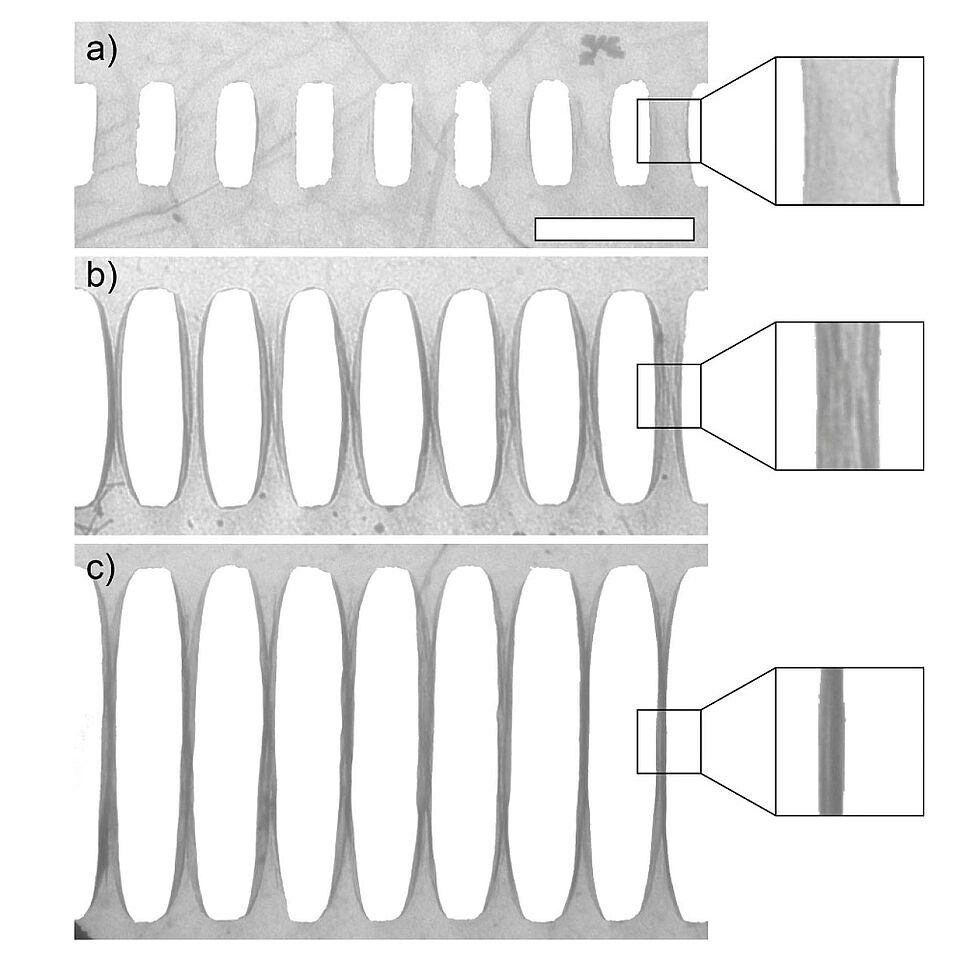

Abstract:
